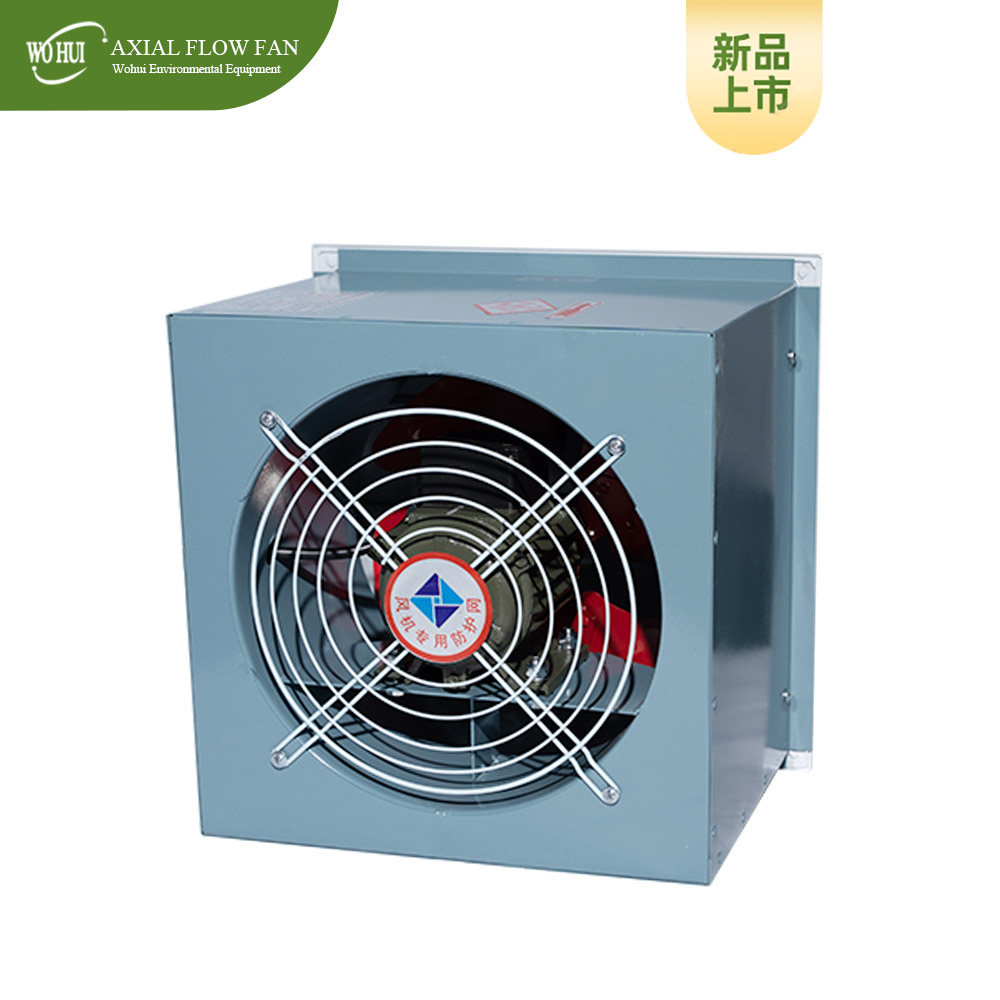

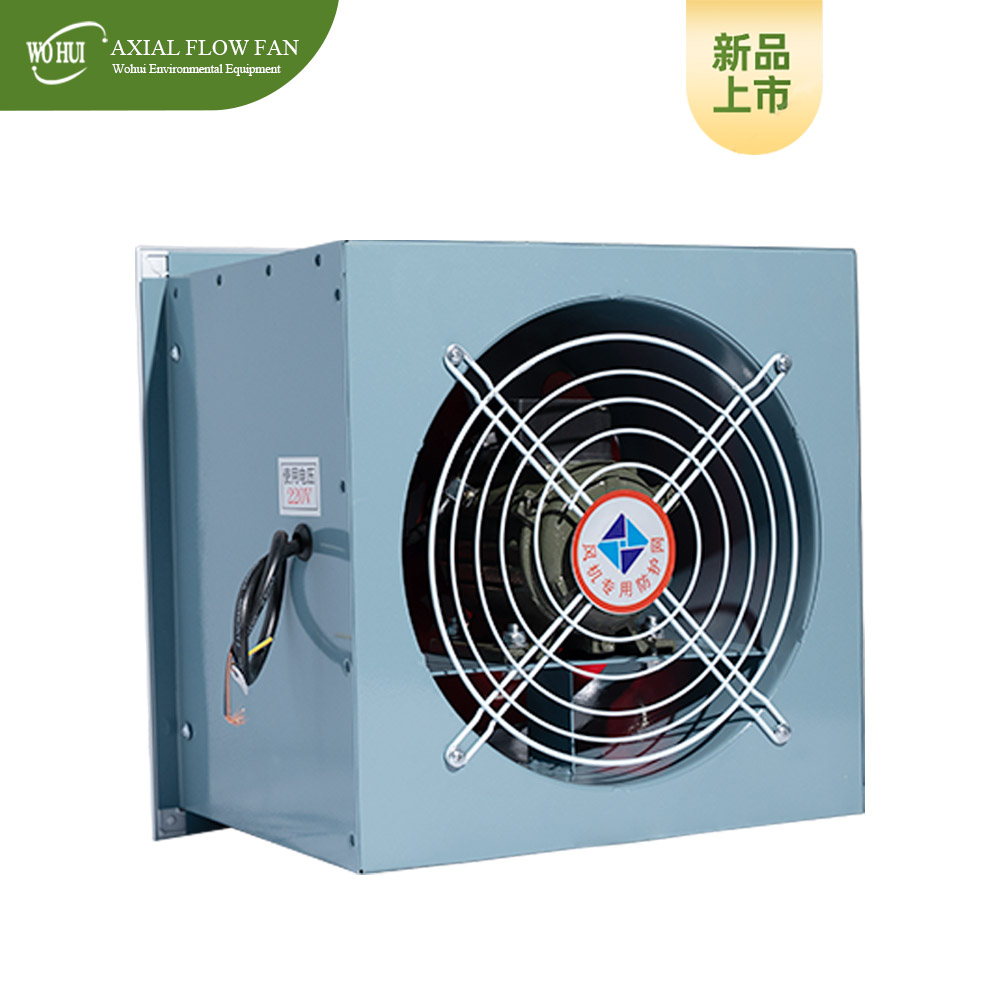

XBDZ (also known as DFBZ) is a wall-mounted axial flow fan with a square housing, low noise, specially designed for wall installation. It features easy installation, quiet operation, rainproof and dustproof properties, and is widely used for exhaust and ventilation in building side walls. 1. Ultra-low noise (main selling point)
It adopts wide blades, large chord length, and a spatially distorted impeller, with low rotational speed and high air volume, reducing noise at the source.
The casing is mostly made of double-layer noise reduction structure (outer layer of steel plate, inner layer of porous sound-absorbing board + sound-absorbing cotton).
Operating noise: ≤ 55–65 dB(A), belonging to the quiet level in industrial fans.

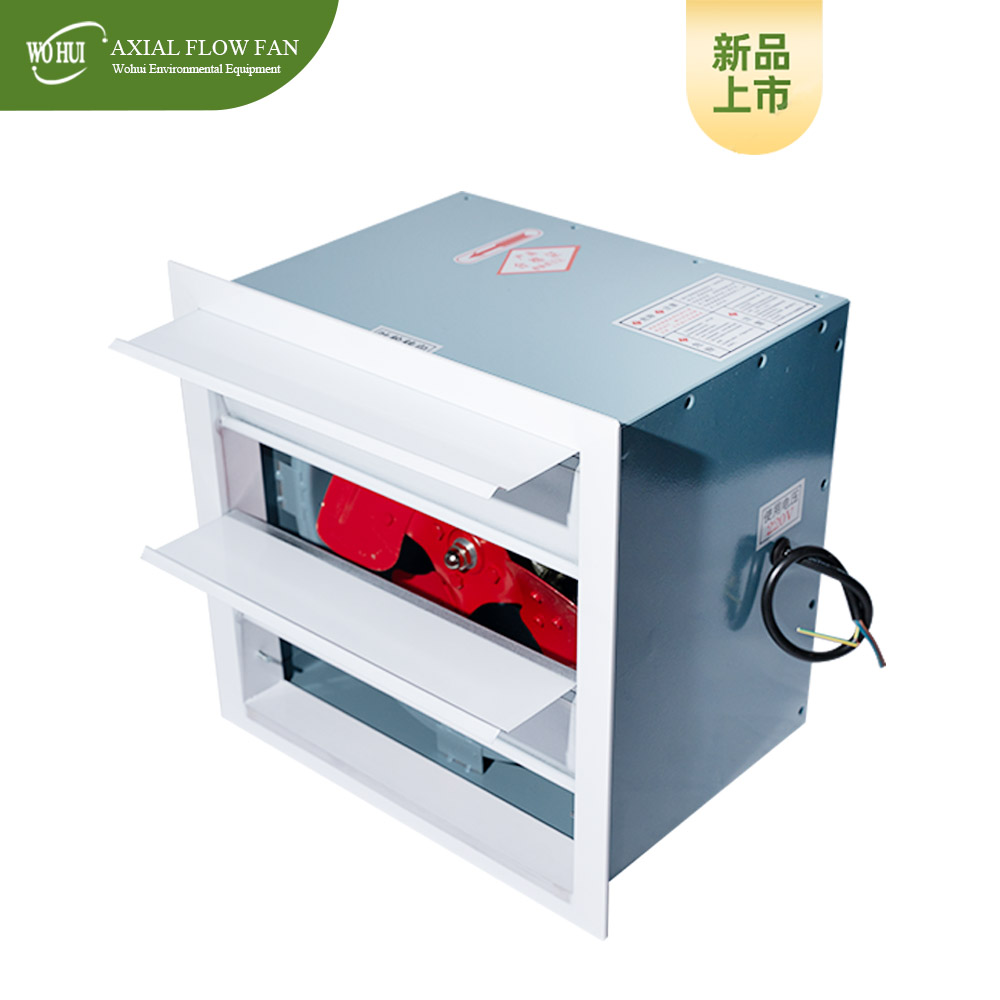

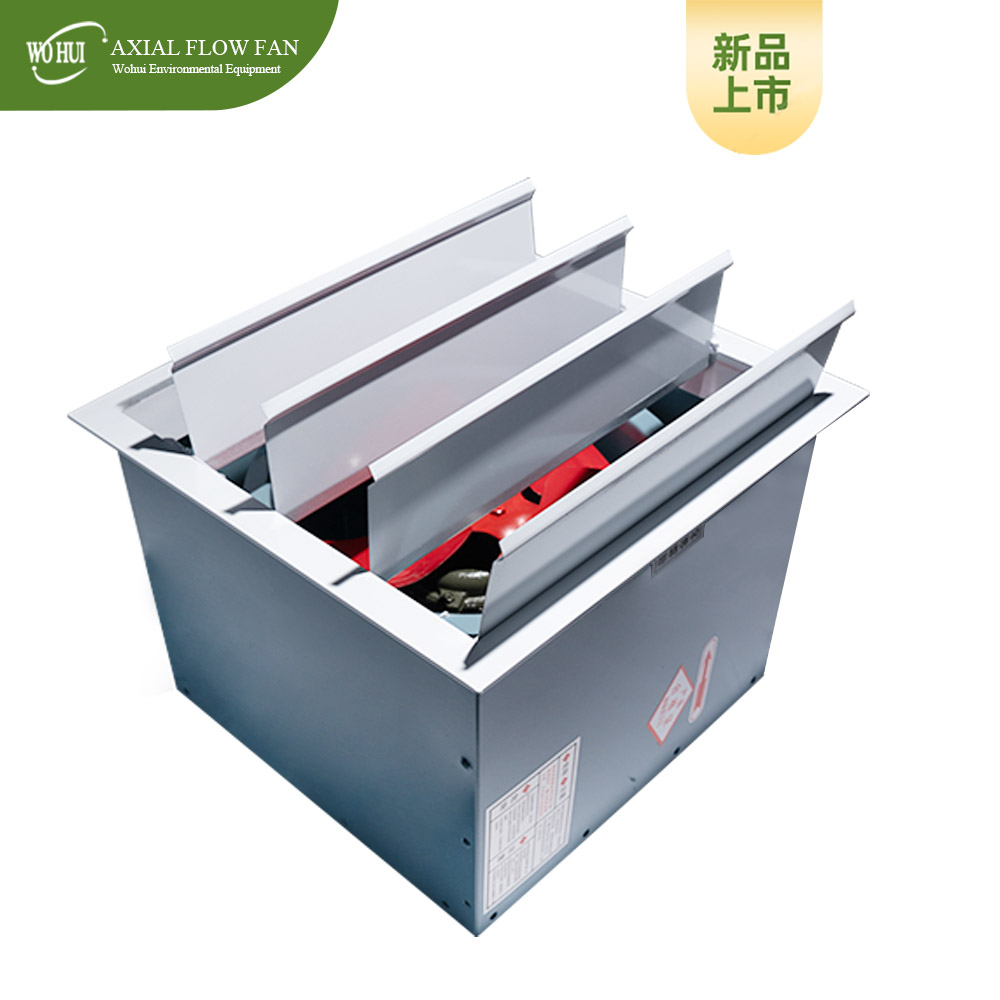

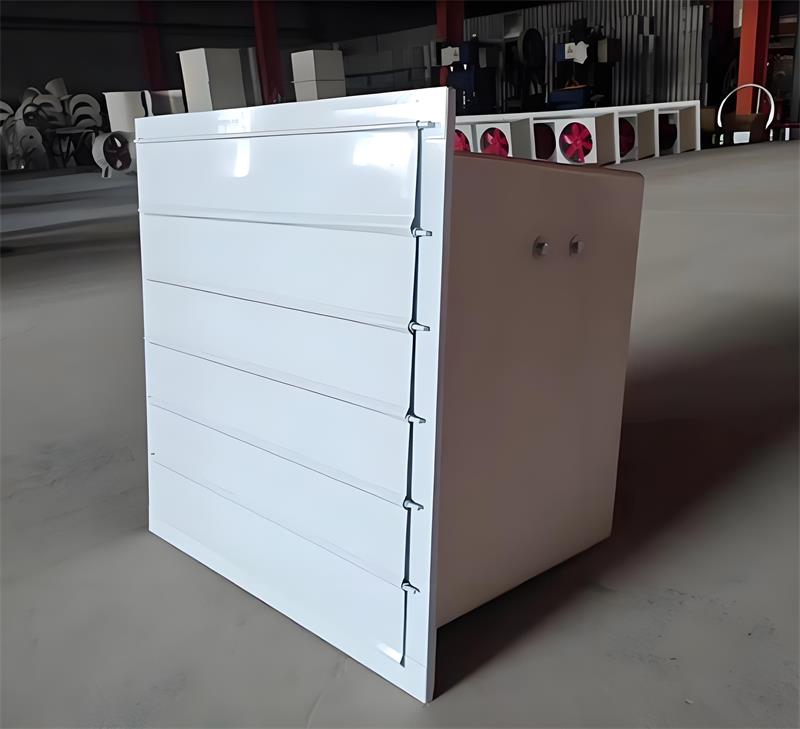

2. Self-closing rain-proof louvers (standard configuration)
The outlet is equipped with aluminum alloy self-closing louvers: they open automatically when the fan starts and close by their own weight when it stops.
They effectively prevent rain, sand intrusion, and insects.
3. Structure and performance
Material: casing steel plate / galvanized plate, impeller aluminum alloy, motor pure copper core.
Drive: mostly direct connection of the motor (inner rotor / outer rotor), with efficient transmission and low failure rate.
Air volume: approximately 600–20,000 m³/h.
Air pressure: 40–240 Pa (low pressure, suitable for short-distance direct discharge).
Voltage: 220V / 380V selectable.
4. Reliable and stable
The impeller has undergone dynamic balance verification, with small vibration and stable operation.
Customization is available: explosion-proof type (BXBDZ, ExdIIBT4), anti-corrosion type, variable frequency type.
II. Common specifications (machine number)
Machine number: 2.5#, 3#, 3.5#, 4#, 4.5#, 5#, 6#, 7#
Corresponding impeller diameter: 250, 300, 350, 400, 450, 500, 600, 700 mm
III. Application scenarios
Industry: factory workshops, warehouses, machine rooms, chemical plants (anti-draft)
Commerce: shopping malls, stadiums, office buildings, schools, hospitals
Civilian: residences, basements, wall-mounted exhaust for livestock farms
IV. Differences from ordinary axial flow fans
Appearance: XBDZ square wall-mounted / ordinary circular pipe type
Installation: embedded in walls, self-closing rain-proof louvers / pipe / bracket installation
Noise: low noise design (≤ 65 dB) / regular noise (≥ 80 dB)
Usage: direct discharge on walls, rain-proof and quiet / general ventilation through pipes
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
A: Dezhou Wohui Environmental Protection Technology Co., Ltd. is a manufacturer founded in 2005, specializing in central air conditioning vent terminal equipment including air vents, air valves and louvers. We are located in Dezhou, Shandong, China.
Q2: What products do you mainly produce?
A: Our main products include air vent grilles, ceiling diffusers, volume control dampers, air valves, ventilation louvers, and related HVAC terminal equipment. Products are exported to more than 80 countries.
Q3: Can you customize products according to drawings?
A: Yes. We support OEM/ODM customization with various materials. Please send your drawings to wangxueqiang077@gmail.com and our team will reply within 6 hours.
Q4: What is your MOQ?
A: MOQ depends on product type. Please contact our sales team via WhatsApp +86 15953773633 for exact quotation.
Q5: Do you have quality certifications?
A: Yes, we have ISO and SGS certificates. Our products pass relevant departmental inspections.
